Business DIvision - Furnaces

Universal
Batch Furnaces

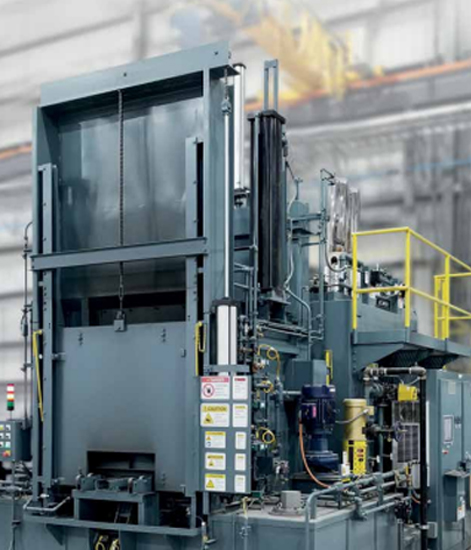

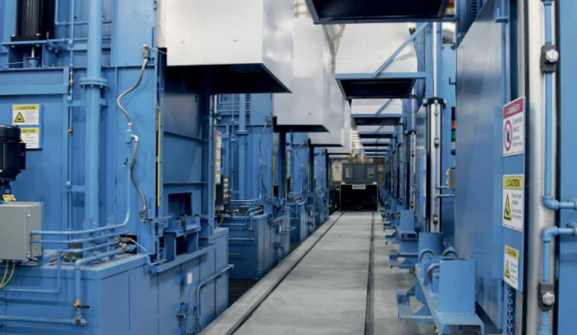

Universal Batch Furnaces

Metallurgical Processes:

  • Carburizing
  • Carbonitriding
  • Neutral Hardening
  • Normalizing
  • Annealing
  • Stress Relieving

Types of Products:

  • Drive and Axle Components,
  • Transmission Components,
  • Shafts,
  • Fasteners,
  • Bearing Components
  • Gears
  • Castings
  • Forgings
  • Precision Machined Components

Standard Batch sizes:

W L H Capacity
24" (610mm) 36" (914mm) 24" (610mm) 1100 lb/500kg
30" (762mm) 48" (1220mm) 24" 610mm 1430 lb/650kg
30" (762mm) 48" (1220mm) 30" (762mm) 1800 lb/800kg
36" (915mm) 48" (1220mm) 30" (762mm) 2500 lb/1150kg
36" (915mm) 48" (1220mm) 36" (915mm) 3500 lb/1600 kg
36" (915mm) 72" (1830mm) 36" (915mm) 6000 lb/2730 kg

Custom built sizes and loads are available.

Unique Features & Options:

  • Gas or electric options
  • Ceramic Fiber or Brick Lined wall refractory
  • Cold Oil/Hot Oil/Salt/Polymer Quenching Media
  • Centrifugal /Propeller Agitation Systems
  • Bung mounted air cooled fan/water Cooled
  • Top cool chamber
  • Transfer car (single or double ended) (UBTC)
  • Companion Equipment - Temper, Preheat, Washer, Scissor Tables
  • Fully automated PLC controlled system
  • SCADA (supervisory control and data acquisition) system
×
